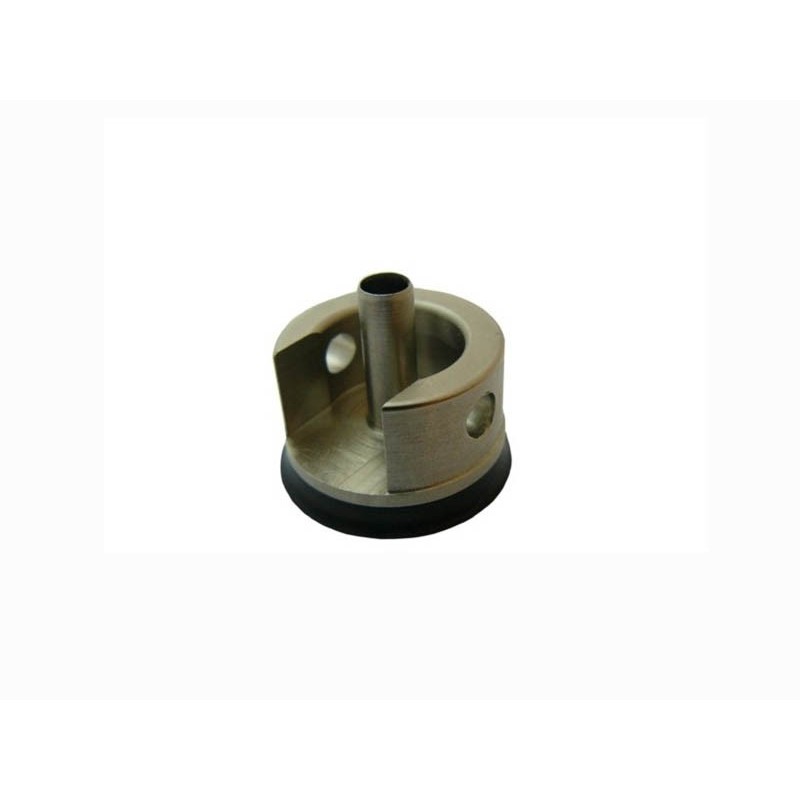

AirsoftParts Silent Cylinder Head X-High Tech
Kč399.00
VAT included
AirsoftParts X-high tech silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin, modified for machined gearboxes with smaller-diameter mounting pins, such as X-high tech or CORE. It features dual sealing, a large rubber impact pad and an electroless nickel-plated surface for high durability and smooth nozzle movement.
Zásady zabezpečení
(upravuje se pomocí modulu Ujištění zákazníka)
Zásady doručení
(upravuje se pomocí modulu Ujištění zákazníka)
Zásady vrácení
(upravuje se pomocí modulu Ujištění zákazníka)
AirsoftParts X-High Tech Silent Cylinder Head for Machined Gearboxes
AirsoftParts X-high tech silent cylinder head is a special version of a CNC-machined cylinder head designed for machined duralumin gearboxes with smaller-diameter mounting pins, including X-high tech and CORE according to the manufacturer. The body is made from EN AW 6012 T6 duralumin and uses dual sealing consisting of a sealing collar and an O-ring. The collar and large rubber impact pad form a single piece that promotes a proper seal between the cylinder head and cylinder while cushioning the mechanical impact of a flat piston head. The duralumin body features a uniform electroless nickel-plated layer that, according to the manufacturer, reaches a hardness of 660–850 HV (58–63 HRC), increases wear and corrosion resistance and creates a smooth surface for nozzle movement. In a comparison with a standard air seal system using an M120 spring, the manufacturer measured an approximate muzzle velocity increase of 6 m/s. However, the actual difference depends on the air seal and configuration of the complete air seal system.
Key Features
For Machined Gearboxes With Smaller Mounting Pins
The X-high tech version is specifically designed for machined duralumin gearboxes with smaller-diameter mounting pins, such as X-high tech or CORE versions.
Dual Cylinder Head Sealing
The combination of a sealing collar and O-ring helps effectively seal the connection between the cylinder head and cylinder and reduce unwanted air loss during compression.
Large Rubber Impact Pad
The sealing collar and large flexible impact pad form a single piece. The rubber section cushions mechanical contact between the flat piston head and cylinder head.
Electroless Nickel-Plated Surface
According to the manufacturer, the uniform electroless nickel layer reaches a hardness of 660–850 HV (58–63 HRC) and provides high wear resistance, corrosion resistance and naturally low friction.
Smooth Nozzle Guidance
The high-quality nickel-plated surface creates a smooth contact surface for nozzle movement, promoting smooth operation during the gearbox cycle.
Technical Specifications
- Type: Silent cylinder head for AEG
- Version: X-high tech for machined gearboxes with smaller-diameter mounting pins
- Material: EN AW 6012 T6 duralumin
- Manufacturing: CNC machining
- Surface Finish: Electroless nickel plating
- Surface Hardness After Plating: 660–850 HV (58–63 HRC)
- Sealing: Dual – sealing collar + O-ring
- Impact Pad: Rubber, integrated with the sealing collar
- Compatibility: V2 and V3 gearboxes in corresponding machined versions with smaller mounting pins
- Examples of Compatible Versions: X-high tech, CORE
- Compatible Piston Head: Flat piston head
- Approximate Muzzle Velocity Change: +6 m/s in a comparison test with a standard air seal system and M120 spring
Package Contents
- 1× cylinder head
- 1× sealing collar with impact pad
Frequently Asked Questions (FAQ)
How Does the X-High Tech Version Differ From the Standard Silent Cylinder Head?
The X-high tech version is modified for machined duralumin gearboxes with smaller-diameter pins used to mount the cylinder head. The manufacturer lists X-high tech and CORE gearboxes as examples.
How Does the Dual Cylinder Head Seal Work?
A sealing collar together with an O-ring is used for sealing. This combination helps reduce air leakage between the cylinder head and cylinder during compression.
Which Piston Head Can Be Used With This Cylinder Head?
According to the manufacturer's specifications, the cylinder head is designed for use with a flat piston head. Compatibility with the specific machined gearbox version and its mounting pins must also be verified.
Is the 6 m/s Muzzle Velocity Increase Guaranteed?
No. The +6 m/s value is an approximate result of the manufacturer's comparison test with a standard air seal system and M120 spring. The resulting muzzle velocity depends on the air seal, components used and overall setup of the specific gun.
