MAXX Thrust Ball Bearing 7x15x5mm

Thrust Ball Bearings are to reduce rotational friction and support axial loads. Ideal for precision work with close tolerances suitable for building models and applications.

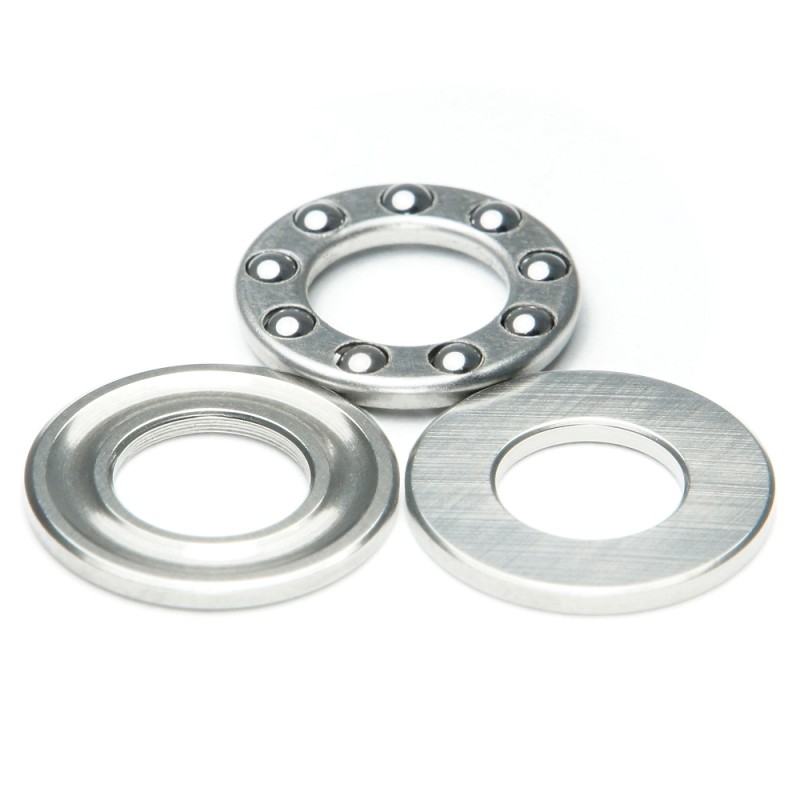

The thrust ball bearings consist of a shaft washer, a housing washer and a cage containing a complement of precision balls. They are separable and can be mounted separately. Made of heat-treated Chrome steel.

	Bore Diameter: d2=7mm
	Outer Diameter: D1=15mm
	Width: H=5mm
	Radius: R=0.3mm
	Bore Diameter Clearance: d1=7.2mm
	Outer Diameter Clearance: D2=14.8mm
	Dynamic Load Rating: C=310kgf
	Static Load Rating: Co=270kgf
