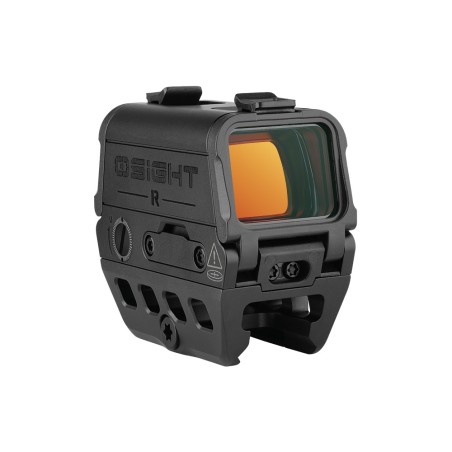

OLIGHT Osight R Red Dot Sight, T1 / T2 Footprint – Black

OLIGHT Osight R enclosed red dot sight with Aimpoint Micro (T1 / T2) footprint

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are bound to the anareus.cz domain.OLIGHT Osight R is a compact enclosed red dot sight designed for use on rifles and other compatible platforms. The enclosed emitter design protects the internal components of the optic from water, dirt and other environmental influences. The large 28 × 22 mm viewing window with a multi-coated finish provides an open sight picture and makes it easier to acquire the aiming point quickly and transition between targets. The Osight R uses a Multi-Reticle System with three display options. The user can choose a precise 2 MOA dot, a prominent 65 MOA circle or a combination of the circle and dot. This allows the reticle to be adapted to the desired balance between aiming speed and precision. The brightness of the red reticle offers 9 daylight and 3 NV levels for use with compatible night vision (NVG). A dedicated NV button allows quick switching between daylight and NV modes, with each mode remembering the last brightness level used. The red dot sight uses the widely adopted Micro T1 / T2 footprint, allowing it to work with an extensive ecosystem of compatible mounts. The package includes an ORS-153 Lower 1/3 Co-Witness RIS mount with a height of 1.535". A low mount with a height of 1.21" or a raised 1.93" version can also be purchased separately from us. Compatible mounts with the Aimpoint Micro T1 / T2 footprint can be used, including suitable mounts from the Vector Optics RUM™ system. The durable body is made from 7075-T6 aluminium alloy. The red dot sight offers IPX8 water resistance, vibration resistance up to 1000 G, an adjustment range of ±50 MOA and an adjustment value of 0.5 MOA per click. Power is supplied by one CR2032 battery, with a stated maximum battery life of up to 83,000 hours at Mode 5. It also features memory of the last setting and a motion sensor. The front and rear lenses are protected by removable covers. The front cover can be replaced with the supplied ARD (Anti-Reflective Device), which reduces unwanted reflections while also creating an additional mechanical barrier in front of the front lens.

Key features of the OLIGHT Osight R red dot sight

Technical specifications

• Manufacturer: OLIGHT
• Model: Osight R
• Type: Enclosed red dot sight
• Magnification: 1×
• Footprint: Micro T1 / T2
• Reticle colour: Red
• Wavelength: 650 nm
• Reticle: 2 MOA dot / 65 MOA circle / 2 MOA dot + 65 MOA circle
• Window size: 28 × 22 mm (1.10 × 0.87")
• Brightness levels: 9 daylight + 3 NV
• Dedicated NV button: Yes
• Memory Function: Yes
• Motion sensor: Yes
• Multi-coated lenses: Yes
• Parallax Free: Yes
• Eye relief: Unlimited
• Adjustment value: 0.5 MOA / click
• Elevation and windage adjustment range: ±50 MOA
• Power supply: 1× CR2032 (included)
• Maximum battery life: Up to 83,000 hours (Mode 5)
• Material: 7075-T6 aluminium
• Water resistance: IPX8
• Vibration resistance: 1000 G
• Operating temperature: -30 to 60 °C
• Storage temperature: -40 to 70 °C
• Dimensions: 69 × 36 × 64 mm
• Weight: 190 g including standard mount and battery
• Included mount: Lower 1/3 Co-Witness ORS-153
• Included mount height: 1.535"
• Recommended M3 tightening torque: 12 in-lbs per screw
• Recommended M5 tightening torque: 43 in-lbs per screw

Package contents

• 1× OLIGHT Osight R
• 1× CR2032 battery (installed)
• 1× Lower 1/3 Co-Witness ORS-153 mount, 1.535"
• 1× adjustment tool
• 2× protective lens cover
• 1× ARD (Anti-Reflective Device)
• 1× Osight R screw set
• 1× cleaning cloth
• 2× READ ME information card
• 1× safety notice
• 1× user manual
• 1× Osight sticker

Frequently asked questions from our store

What reticles does the OLIGHT Osight R offer?

The red dot sight uses a Multi-Reticle System with three display options: a standalone precise 2 MOA dot, a standalone 65 MOA circle or a combination of the 2 MOA dot and 65 MOA circle. This allows the user to adapt the display to the situation.

What mount is included with the red dot sight?

The package includes an ORS-153 Lower 1/3 Co-Witness RIS mount with a height of 1.535". A lower 1.21" version or a raised 1.93" mount can also be purchased separately from us. Thanks to the Micro T1 / T2 footprint, other dimensionally compatible mounts can also be used, including suitable Vector Optics RUM™ variants.

Is a battery included?

Yes. A CR2032 battery is included.

Can the Osight R be used with night vision?

Yes. The Osight R offers 3 NV levels in addition to 9 daylight brightness levels. A dedicated NV button allows quick switching between daylight and NV modes, with each mode remembering the last brightness level used.
