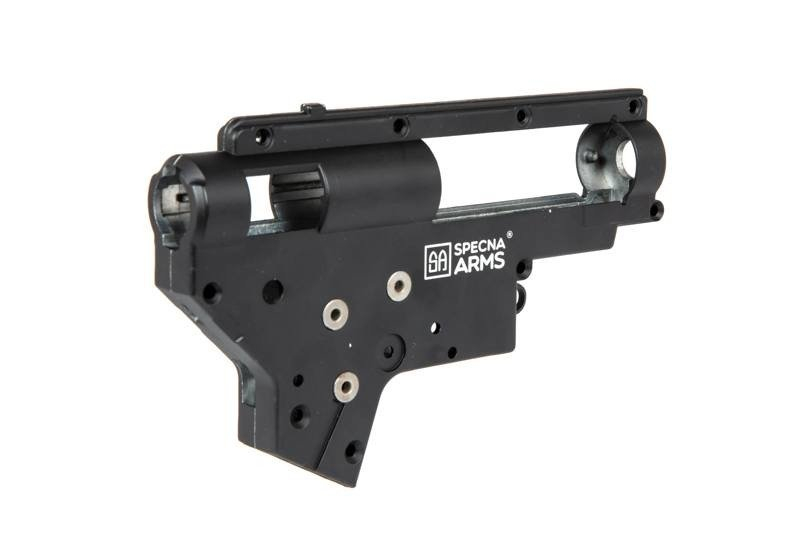

SA V2 QSC CORE™ Gearbox Shell with 8mm Bearings – Black

Specna Arms V2 QSC CORE™ gearbox shell for M4 / AR15

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are bound to the anareus.cz domain.Specna Arms CORE™ V2 QSC gearbox shell is a replacement gearbox base for electric airsoft guns based on the M4 / AR15 platform. It is primarily designed for Specna Arms CORE™ Gen1 models, but can also be used in other compatible bodies designed for V2 gearboxes. It is suitable for repairing a damaged original shell as well as a base for building a new gearbox. The shell is made from a die-cast zinc-based metal alloy (ZAMAK / zinc alloy). This is a construction method commonly used in factory-made entry-level and mid-range AEG gearboxes. The shell is designed for standard to moderately stressed builds, typically with springs up to approximately M110 / M120. However, the actual durability of the build always also depends on correct gearbox assembly, spring power, piston assembly weight, AOE and how the gun is used. The package includes a set of 8 mm steel bushings for supporting the gears. Bushings have no moving balls and their advantage is their simple and mechanically durable construction. When installing the gears, they must of course still be properly shimmed and the free movement of the entire assembly must be checked. The shell supports the QSC quick spring change system. The Specna Arms V2 QSC spring guide (SPARMS206) and V2 gearbox screws are not included in this package and must be purchased separately if required. The QSC designation of the shell should therefore not be confused with a complete quick spring change system kit. When building a more powerful gearbox, we recommend radiusing the front corners of the cylinder window. Sharp internal corners are points where mechanical stress becomes concentrated under repeated impacts. Correctly rounding these corners can distribute the stress more effectively and reduce the risk of cracks developing. This modification requires experience and should ideally be carried out by an airsoft technician.

Key features of the Specna Arms V2 QSC CORE™ gearbox shell

V2 gearbox for M4 / AR15

Replacement shell designed primarily for Specna Arms CORE™ and other compatible M4 / AR15 AEGs using a V2 gearbox.

QSC spring change

The shell supports the QSC quick spring change system. The required QSC spring guide is not included.

8 mm steel bushings

The package includes 8 mm steel bushings with a simple and mechanically durable construction for supporting the gears.

Die-cast zinc alloy

The shell is made from die-cast ZAMAK metal alloy, a standard solution used in factory-made AEG gearboxes in this category.

For repairs and new builds

Suitable as a replacement for a damaged original shell or as a base for assembling a compatible V2 gearbox from individual components.

Specna Arms V2 QSC CORE™ gearbox shell

Replacement V2 QSC gearbox shell for Specna Arms CORE™ including 8 mm steel bushings. QSC spring guide and screws are not included.

Technical specifications

• Manufacturer: Specna Arms
• Series: CORE™
• Type: Gearbox shell
• Gearbox version: V2 QSC
• Designed for: AEG
• Platform: M4 / AR15
• Material: Die-cast ZAMAK metal alloy / zinc alloy
• Bushing hole diameter: 8 mm
• Bushings included: Yes, steel bushings
• Quick spring change system: QSC
• QSC spring guide included: No
• Mounting screws included: No
• Compatible QSC spring guide: Specna Arms V2 (SPARMS206)
• Recommended use: Standard to moderately stressed builds
• Approximate spring range: M110 / M120

Package contents

• 1× Specna Arms V2 QSC CORE™ gearbox shell
• 6× 8 mm steel bushing

Frequently asked questions from our store

Is the shell designed specifically for Specna Arms CORE™?

Yes. The shell is designed primarily as a replacement part for Specna Arms CORE™ M4 / AR15 AEGs. It can also be used in other compatible bodies designed for V2 gearboxes, but the dimensional compatibility of the specific build should always be checked.

Is the QSC spring guide included?

No. The shell is designed for the QSC system, but the V2 QSC spring guide (SPARMS206) itself is not included and must be purchased separately.

Are gear bushings included?

Yes. The package includes six 8 mm steel bushings, two for each of the gearbox's three gears.

How strong a spring can be used in this shell?

The shell is primarily suitable for standard to moderately stressed configurations, approximately with M110 to M120 springs. However, the spring rating alone does not determine the actual stress placed on the gearbox – piston assembly weight, AOE, RoF and the overall tuning of the gun are also important.

What is gearbox radiusing and why is it done?

Radiusing means rounding the sharp front corners of the cylinder window. Mechanical stress becomes concentrated in these areas when the piston assembly impacts, which can cause cracks to develop. Correctly rounding the corners helps distribute this stress, which is particularly useful in more heavily stressed builds.
